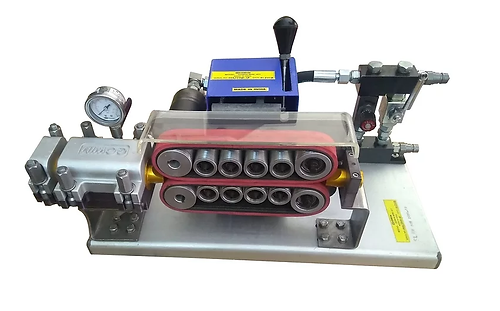

Gowin Minijet Hydraulic Cable Blowing Machine

GOWIN’s s Minijet Microfiber cable blowing machine powered by hydraulic power pack is a new series of equipment in cable blowing designed to meet the installation of Micro-optical fiber cables in pre-installed ducts at quick intervals safely.

GOWIN’s Minijet cable blowing machine can blow microfiber cables of size 3mm to 10 mm into micro ducts from 7mm to 32 mm. The machine is powered by a Hydraulic power pack fitted with a 5.5 Hp Honda petrol engine.

This new series microfiber cable blowing machine GOWIN MINI JET installs micro fiber cable into micro ducts by Hydraulic motor along with high-pressure air stream into ducts. Thus the fiber cable floats inside the duct reduces the friction and transport the fiber cable inside the micro ducts at an average speed of 100 to 125 meters per minute reaches the target distance.

Air compressor of capacity 50 to 60 CFM for micro ducts up to 20 mm and pressure rating of 300 -350 CFM up to 40 mm duct needed to operate this equipment.


KEY FEATURES

​​

  • Premium quality rust-free and corrosion-free aluminum die casting pushing unit

  •  5.5 HP Honda engine used in power pack for speed installation of microfiber.

  •  Aluminium Hydraulic oil tank used in power pack enabling self-cooling of oil while in circulation.

  •  High-quality V groove belt with longer life and better performance enables smooth flow of cables

  •  Hardened, heat-treated, and surface coated accessories used.

  •  Branded Bosch Rexroth Hydraulic pump for Hydraulic Powerpack

  •  Safety Valves with the option to shut down in critical situations.

  •  Air Chamber made of HE30 grade Aluminium gives longer life.

​



OVERVIEW


  •  Fabrication: Aluminum Casting

  •  Body Finish: Powder Coating

  •  Cable Dia(mm) : 03 to 14

  •  Duct OD(mm) : 10 to 40

  •  Drive Unit : Hydraulic

  •  Engine: Honda Petrol

  •  Engine Max Power(kW) : 6.5

  •  PushingForce(N) : 800

  •  Linear Pressure on Cable(N/cm) : 80

  •  Max.Speed (m/min) : 100-125

  •  Pump delivery rating : 20 lpm

  •  Hydraulic inlet Pressure : 40-60 bar

  •  Air inlet for Duct pressure : 13 Kg/cm2
